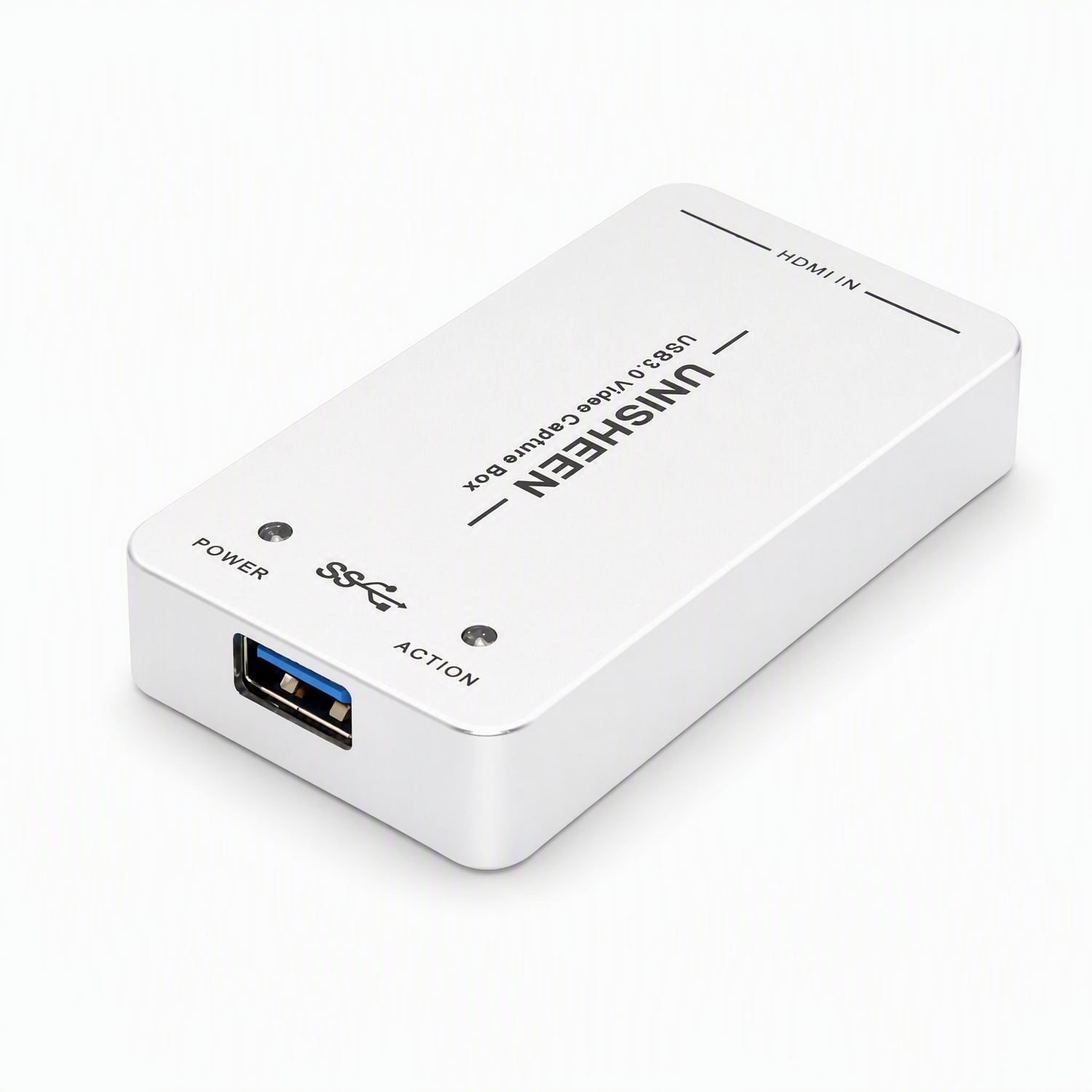

Single HDMI Input – One HDMI port for 1080p60 capture; ideal for single-camera streaming, video conferencing, and screen recording
Driver-Free Plug-and-Play – USB 3.0 interface with UVC compliance; no driver installation required – just plug in and start capturing
Crisp 1080p60 Capture – High-quality, smooth video at 60fps with embedded HDMI audio support for professional recording and streaming
Broad Software Compatibility – Works with OBS, vMix, Wirecast, Zoom, Teams, Skype, VLC, and more
Please contact us to serve you!" >
| Interface | |
| USB interface | USB3.0, 360MB/s Bandwidth (Compatiable USB2.0) |
| Input interface | 1xHDMI |
| Output interface | USB 3.0 |
| Video input | 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I |
| Audio input | HDMI embedded |
| System | Windows (7, 8, 8.1, 10), Linux (kernel version 2.6.38 and above), OS X (10.8 and above) |
| Standard | |
| HDMI input format | HDMI 1.4a compliance |
| Transmission speed | HDMI: 165MHZ |
| Video capture | UVC (USB video class) compliance |
| Audio capture | UAC (USB audio class) compliance |
| Output color space | YUV2 |
| General | |
| Operation system | Support version x86 & x64 from Windows 7, 8.1, 10, Windows Server 2008 R2 |
| Compatible software | Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wirecast, AMCAP etc. |
| Compatible dev. interface | DirectShow (Windows), DirectSound (Windows) |
| Update | Firmware can be updated by USB port |
| Dimension | 46x84x14mm |
| Box Dimension | 100x146x53mm |
| Net/Gross Weight | 0.2 / 0.3kg |
| Consumption | <= 3.0 W |
| Working Temperature | 0-50 degree |
| Storage humidity | 5%-90% |
