*Work in 4 Channel Simultaneously
*Up to 4 Channel 1080p60 Input
*Support Linux/Win11
*Support OBS/vMix/QuickTime/VJ/Zoom/VLC etc.
*PCIex4
Please contact us to serve you!" >
| Interface | |
| PCIe interface | PCIe2.0 X4 |

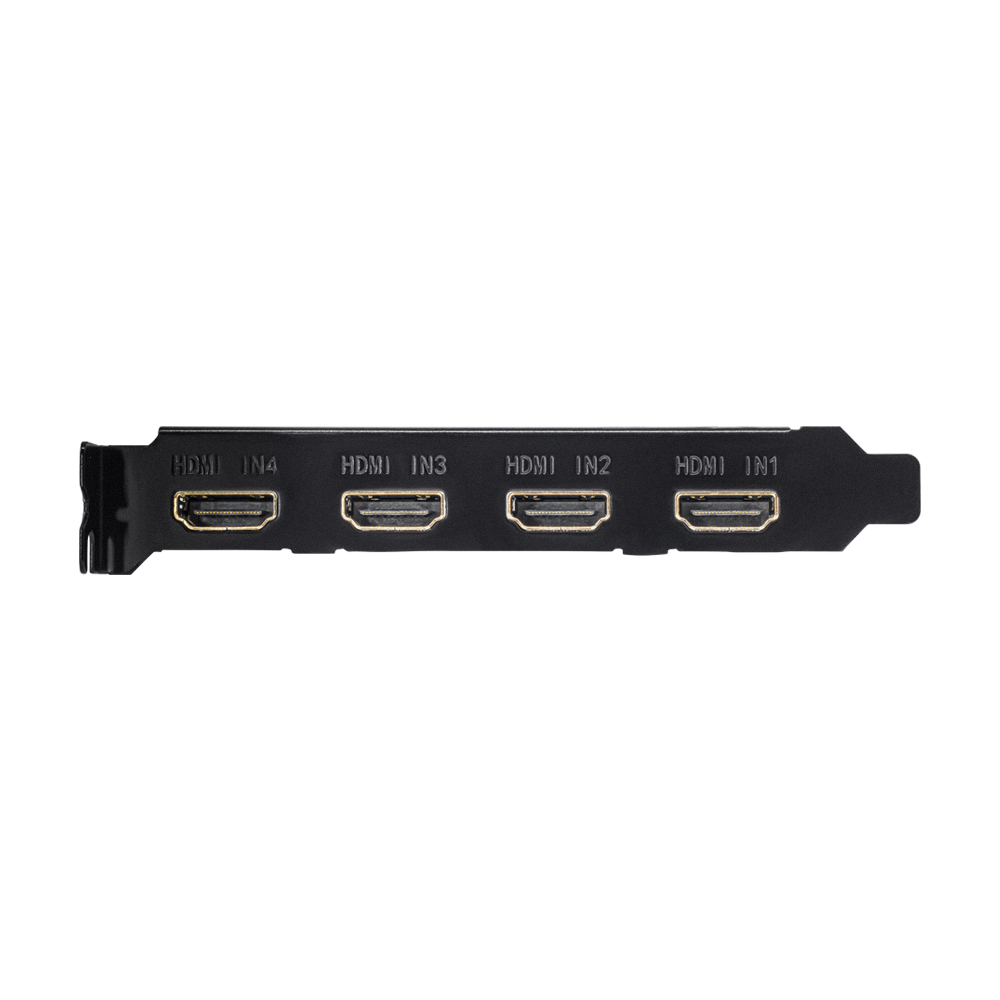

| Input interface | 4xHDMI 1.4a |
| Output interface | PCIeX4 (Compatiable PCIe X8 X16) |
| Video input | 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I |
| Audio input | HDMI Embeded |
| Standard | |
| HDMI input format | HDMI 1.4a |
| Output color space | YUV2 4:2:2 |
| Recording Mode | Software Compression, Real-Time Mode |
| General | |
| Operation system | Windows (7, 8, 8.1,10), Linux (kernel version 2.6.38 and above), Windows Server 2008 R2 |
| Compatible software | Vmix, Wirecast, OBS, VJ, Xsplit, Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, AMCAP etc. |
| Compatible SDK | DirectShow (Windows), DirectSound (Windows), V4L2 |
| Update | Firmware can be updated |
| Dimension | 98x87mm |
| Board Height | Full Height Bracket (Compatiable full Height Chassis) |
| Consumption | <= 2.0 W |
| Work/Storage Temp. | 0-60 degree centigrade |
| Storage humidity | 5%-90% |
