UC2700H 4K60 HDR Video Capture Box with VRR Passthrough – 2160p60, USB 3.0, Plug-and-Play for PS5, Xbox & PC Game Streaming

4K60 Capture + 4K60 Passthrough – Record and stream in stunning 2160p60 while gaming on your monitor at full resolution with zero-latency preview
HDR & VRR Passthrough – Preserve HDR color and variable refresh rate on your gaming display with no added latency
Driver-Free Plug-and-Play – UVC-compliant; no driver installation needed – works instantly with Windows 11, macOS, and Linux

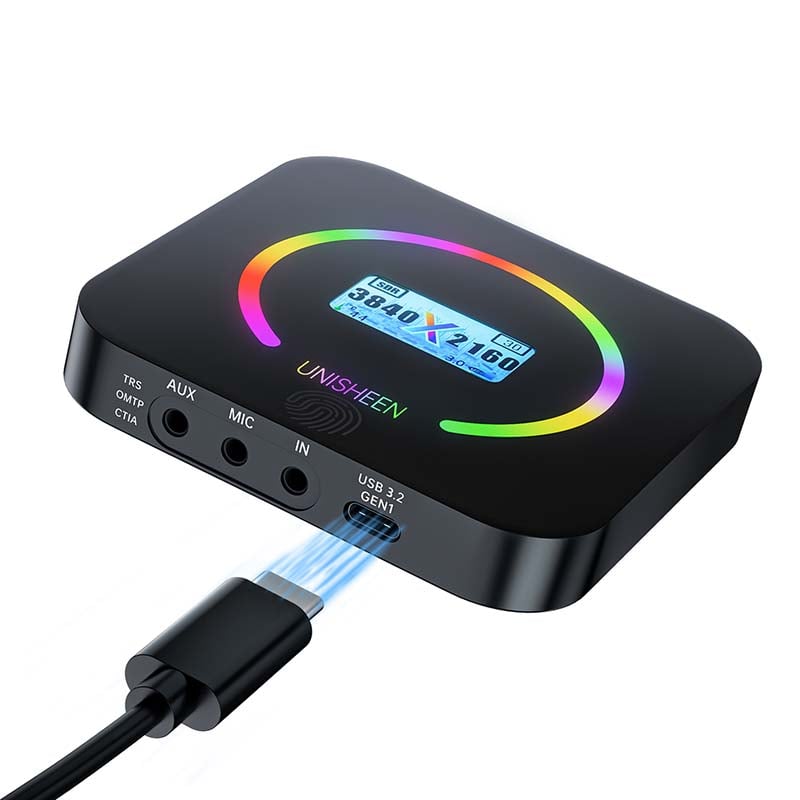

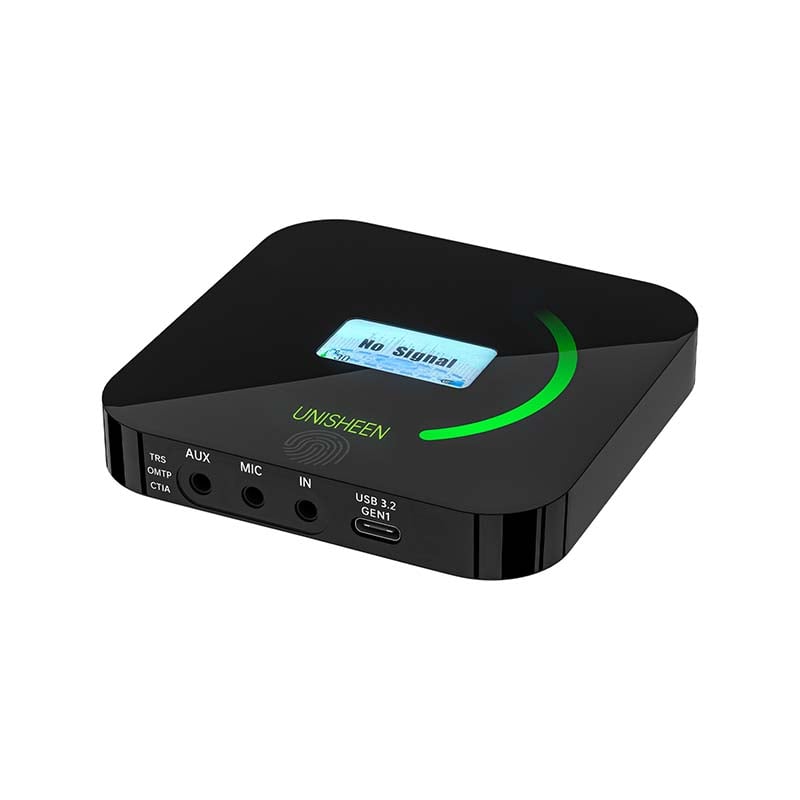

Built-in OLED Status Display – Real-time visual confirmation of input resolution, frame rate, HDR/VRR status, and audio levels at a glance
Audio Mixing with Mic & Line In – 3.5mm mic input and external line-in for real-time game chat, commentary, and background music mixing
Universal Software Support – Compatible with OBS, vMix, QuickTime, Zoom, VLC, and more

Inquiry Contact Us

Please contact us to serve you!" >

Is there a problem?
Please contact us to serve you!

+86-15012722166

[email protected]

Inquiry

Description

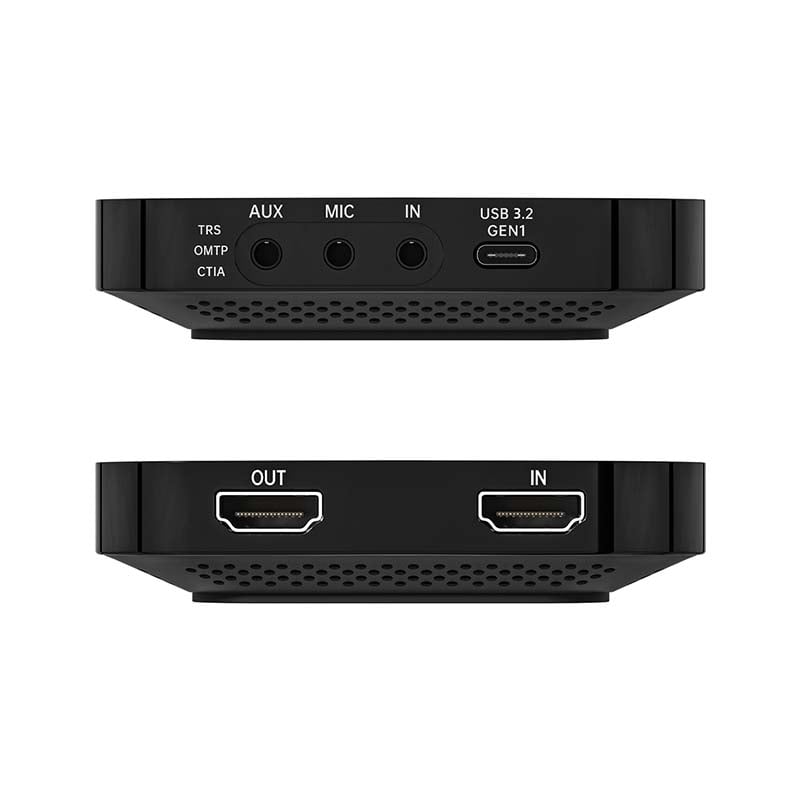

Interface
USB interface	TYPE-C (Compatible USB3.0)

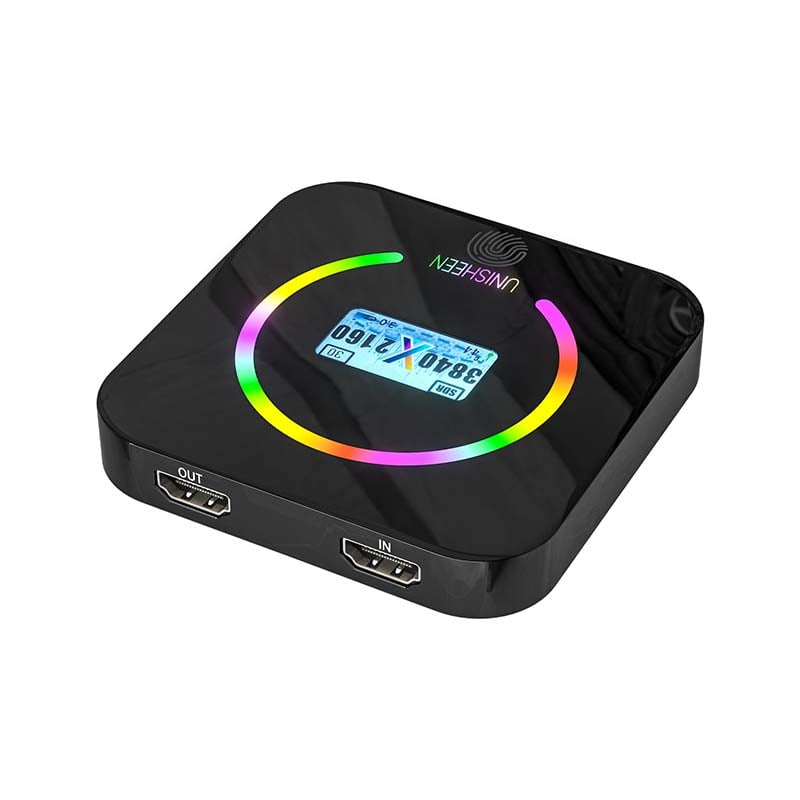

Input interface	1xHDMI / 1xloopout
Output interface	1xHDMI Loop (2160p60 1080p240 1440p120)
Video input	4KP60/30, 1080P240/144/50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I
HDR	HDR Pass-Through Resolution: 2160p60 HDR, 1440p120, 1080p240
VRR	VRR Pass-Through Resolution: 3840 x 2160 - VRR(48 - 60 Hz), 1920 x 1080 - VRR(48 - 120 Hz)
Audio input	HDMI embedded / 1xLine In / 1xMic In
Standard
Record	2160p60, 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I
Output color space	YUV, NV12
Recording Mode	Software Compression, Real-Time Mode
USB 3.1 Gen2	N/A
USB 3.0	Up to 1 Channel 2160p60 Recording
Audio input	PCM Stereo
Operation system	Windows 10/11, Linux, MacOS
Compatible software	VJ, OBS, Zoom, vMix, QuickTime, Microsoft Teams, Skype, Google Hangouts, Potplayer, VLC, Wirecast, AMCAP etc.
Free Driver	Windows / MacOS / Linux
HDR10 Capture	2160p60 SDR / 1080p60 HDR
OLED Screen	256 Color
General
Dimension	95x95x18mm
Box Dimension	164x115x42mm
Net/Gross Weight	0.15 / 0.35kg
Consumption	< 5 W
Working Temperature	0-50 degree
Storage humidity	5%-90%
Included in package
USB Grabber	1pcs
USB Cable	1pcs
Type-C Adapter	1pcs
User Manual	1pcs
