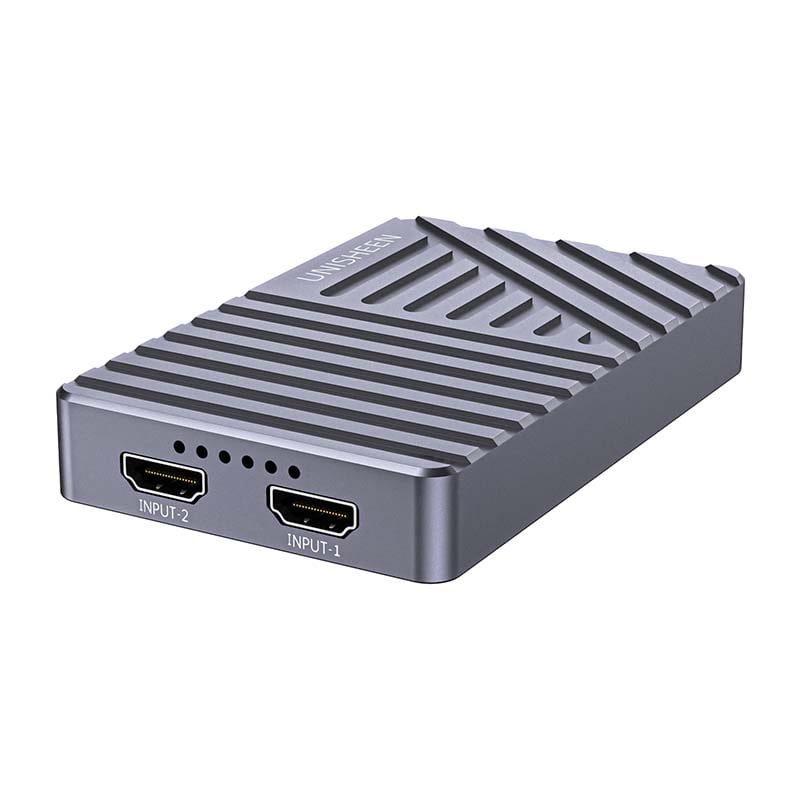

Simultaneous Dual-Channel 4K30 Capture – Two independent HDMI inputs for multi-camera 4K production
Plug-and-Play Compatibility – Works seamlessly with Windows 11, macOS, and Linux; UVC-compliant

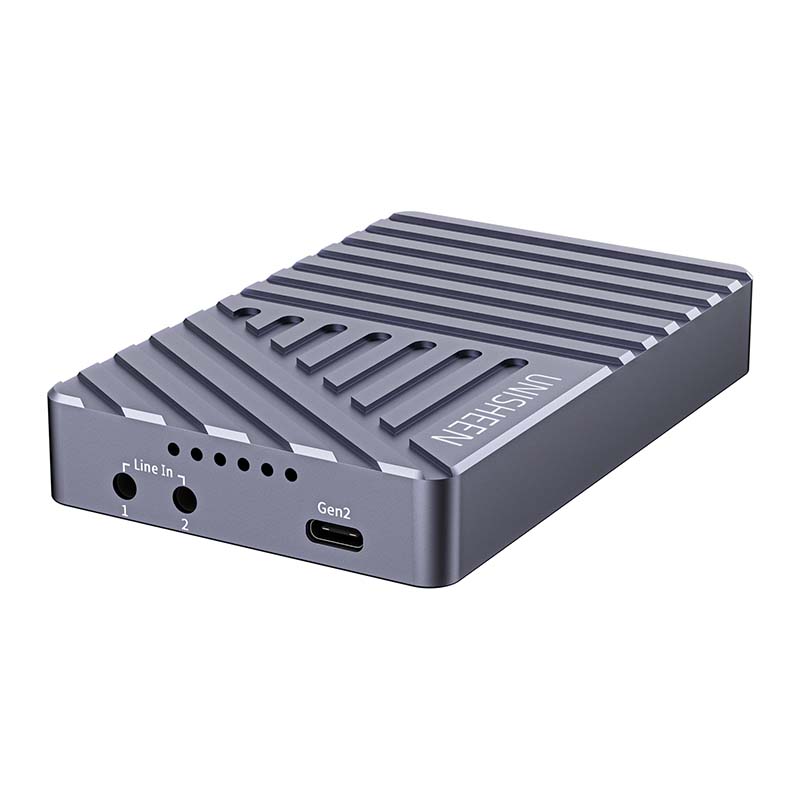

External Line In for Audio Mixing – 3.5mm line-in for external audio sources
Universal Software Support – Compatible with OBS, vMix, QuickTime, Zoom, VLC, and more

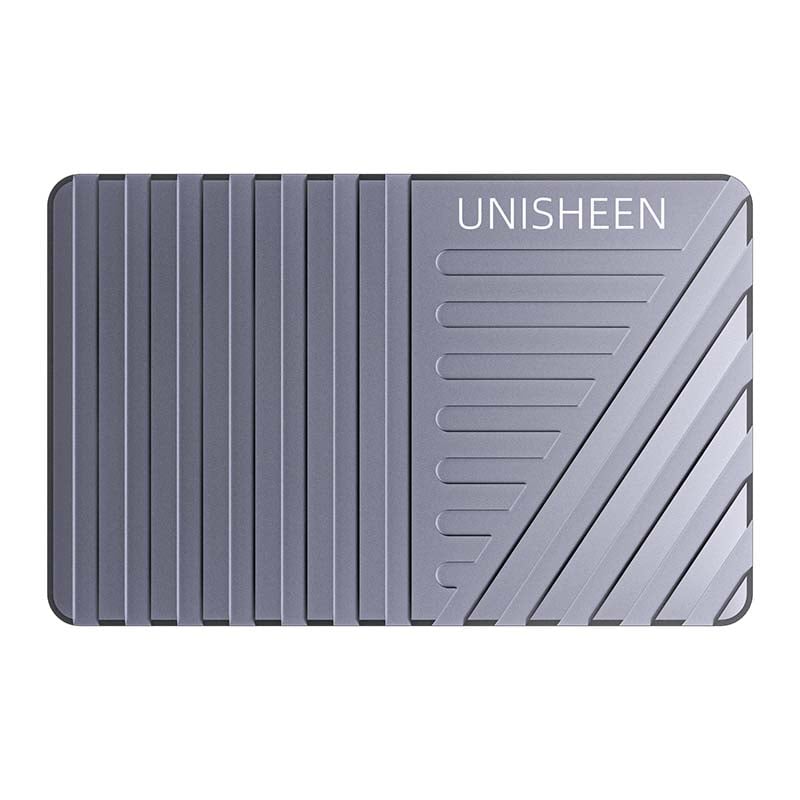

Premium Aluminum Alloy Enclosure – CNC-machined and anodized for durability, heat dissipation, and a professional finish
Customization Available – OEM branding, color options, and firmware configuration available upon request
Please contact us to serve you!" >
| Interface | |
| USB interface | USB3.1 Gen2 (Compatiable USB3.0) |
| Input interface | 2 Channel HDMI (Dual Channel Input) |
| Output interface | USB 3.1 Gen2 |
| Audio input | 2 Channel HDMI embedded / External line in |
| Standard | |
| Input Resolution | 2160p30/25/24, 1440p60/50, 1080p120, 1080P60/50/30/25/24, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480i |
| Recording Resolution | 2160p30, 1080p120, 1080P50/60, 720P50/60, 576P, 480P |
| Output color space | RGB YUY2 NV12 |
| Recording Mode | Software Compression, Real-Time Mode |
| USB 3.1 Gen2 Cap. | Up to 2 Channel 4K30 Recording |
| USB 3.0 Cap. | Up to 2 Channel 1080p60 Recording |
| Audio format | PCM Stereo |
| Operation system | Windows 10/11, Linux, MacOS |
| Compatible software | VJ, OBS, Zoom, vMix, QuickTime, Microsoft Teams, Skype, Google Hangouts, GoToMeeting, Potplayer, VLC, Wirecast, AMCAP etc. |
| Free Driver | Windows / MacOS / Linux |
| General | |
| Dimension | 108x70x18mm |
| Box Dimension | 100x146x53mm |
| Net/Gross Weight | 0.2 / 0.3kg |
| Consumption | <= 5 W |
| Working Temperature | 0-50 degree centigrade |
| Storage Temperature | -20-70 degree centigrade |
| Storage humidity | 5%-90% |
| Included in package | |
| USB Grabber | 1pcs |
| USB Cable | 1pcs |
| Type-C Adapter | 1pcs |
| User Manual | 1pcs |
