Universal Input Compatibility – Supports SDI, HDMI, DVI, VGA, Component (YPbPr) & Composite (CVBS) – one box for all video sources
Portable Plug-and-Play – External USB 3.0 box, no PC disassembly or internal slot required; ideal for laptops and mobile setups
Crisp 1080p60 Capture – High-quality video at 60fps with low latency for smooth, detailed recording and streaming
Works with All Major Software – OBS, vMix, Wirecast, Zoom, Teams, VLC, and more; UVC-compliant for effortless integration
Please contact us to serve you!" >
| Interface | |
| USB interface | USB3.0, SuperSpeed (Compatiable USB2.0) |

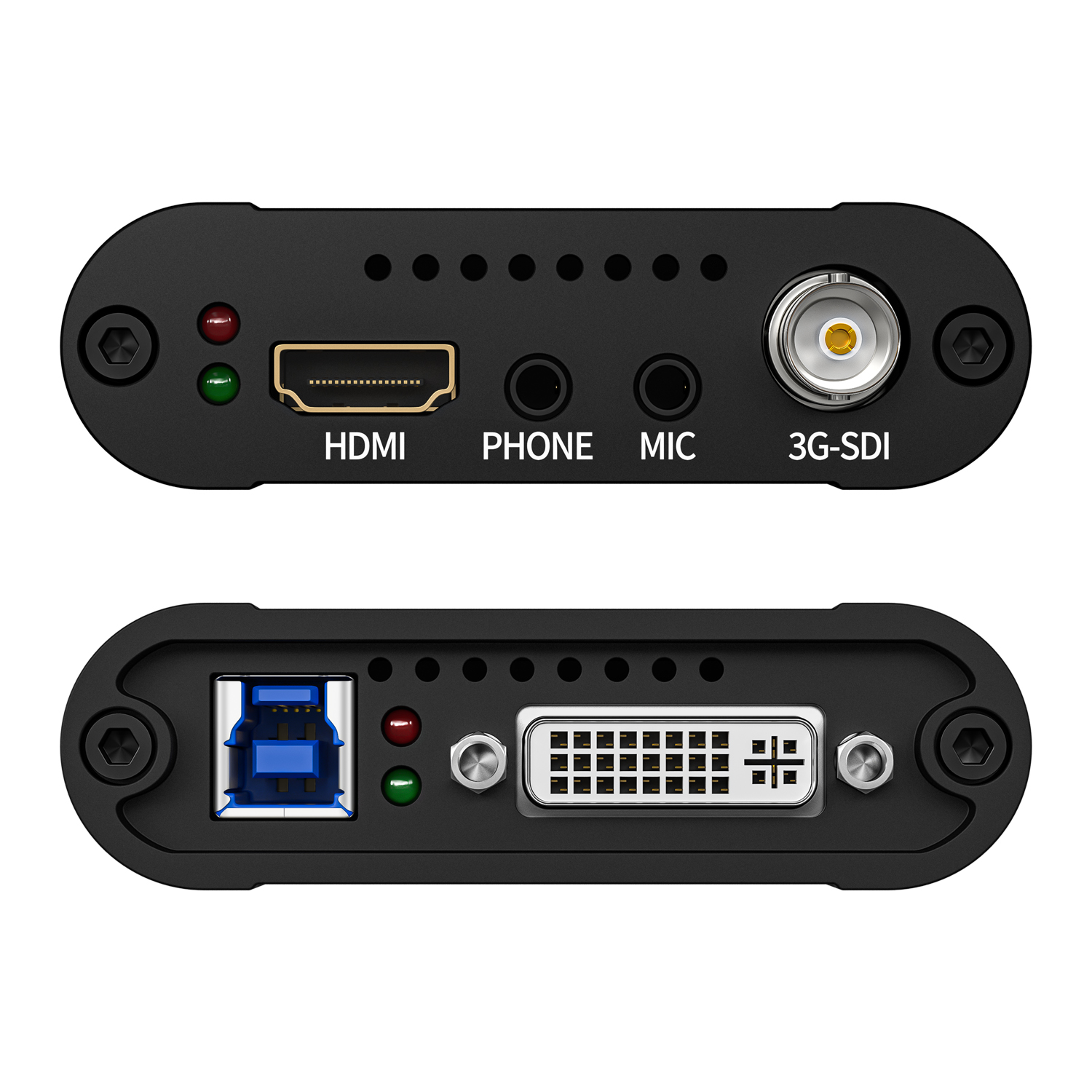

| Input interface | 1xSDI, 1xHDMI, 1xDVI-I/D, 1xVGA, 1xYPbPr, 1xCVBS, 1xMic, 1xPhone |
| Output interface | USB3.0 |
| Video input | 2160p30(hdmi), 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I |
| Audio input | HDMI/SDI embedded |
| Standard | |
| HDMI input format | HDMI 1.4a compliance, Support 1080P/60HZ 8-bit, (RGB, YUV) SD/HD/3G-SDI, SMPTE-259/274/296/372/424/425/292 compliance |
| Transmission speed | HDMI: 165MHZ, SDI: 1.485Gb/s, 2.97Gb/s |
| Video capture | UVC |
| Audio capture | UAC |
| Output color space | YUV |
| Recording Mode | Software Compression, Real-Time Mode |
| General | |
| Operation system | Windows (7, 8, 8.1, 10), Linux (kernel version 2.6.38 and above), OS X (10.8 and above), Windows Server 2008 R2 |
| Compatible software | Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wirecast, AMCAP etc. |
| Compatible dev. interface | DirectShow (Windows), DirectSound (Windows) |
| Update | Firmware can be updated by USB port |
| Dimension | 81x108x24mm (PCBA 71x96mm) |
| Box Dimension | 118x201x50mm |
| Consumption | <= 3.5 W |
| Working Temperature | 0-50 degree |
| Storage Temperature | -20-70 degree |
| Storage humidity | 5%-90% |
