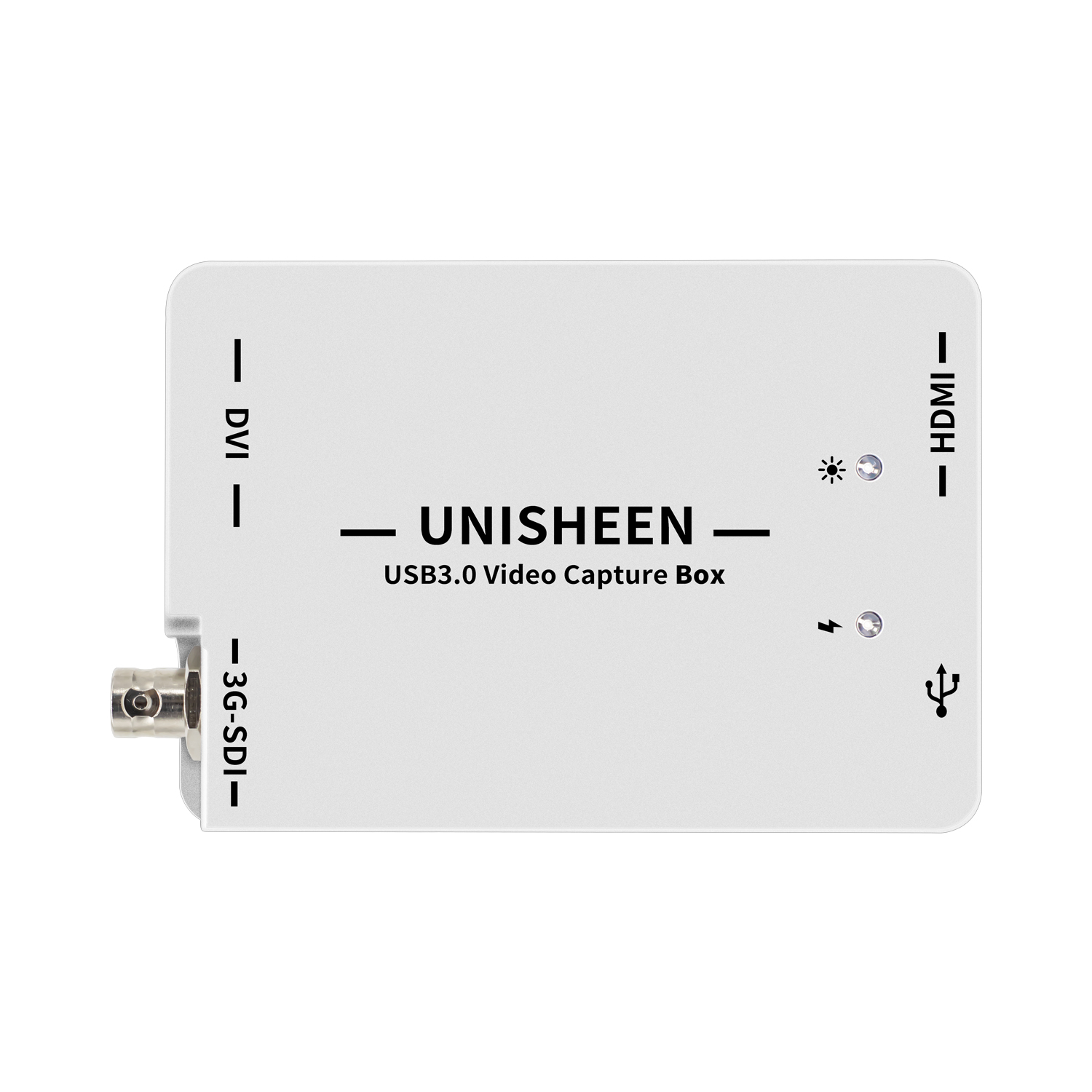

3 Digital Inputs – Supports SDI, HDMI, and DVI-D for pure digital signal capture without analog complexity
Plug-and-Play USB 3.0 – External capture box, no internal installation required; works with laptops and mobile setups
1080p60 High-Quality Capture – Crisp, smooth video at 60fps with low latency for professional recording and streaming
Broad Software Compatibility – Works with OBS, vMix, Wirecast, Zoom, Teams, VLC, and more; UVC-compliant for hassle-free integration
Please contact us to serve you!" >
| Interface | |
| USB interface | USB3.0, 360MB/s Bandwidth (Compatiable USB2.0) |

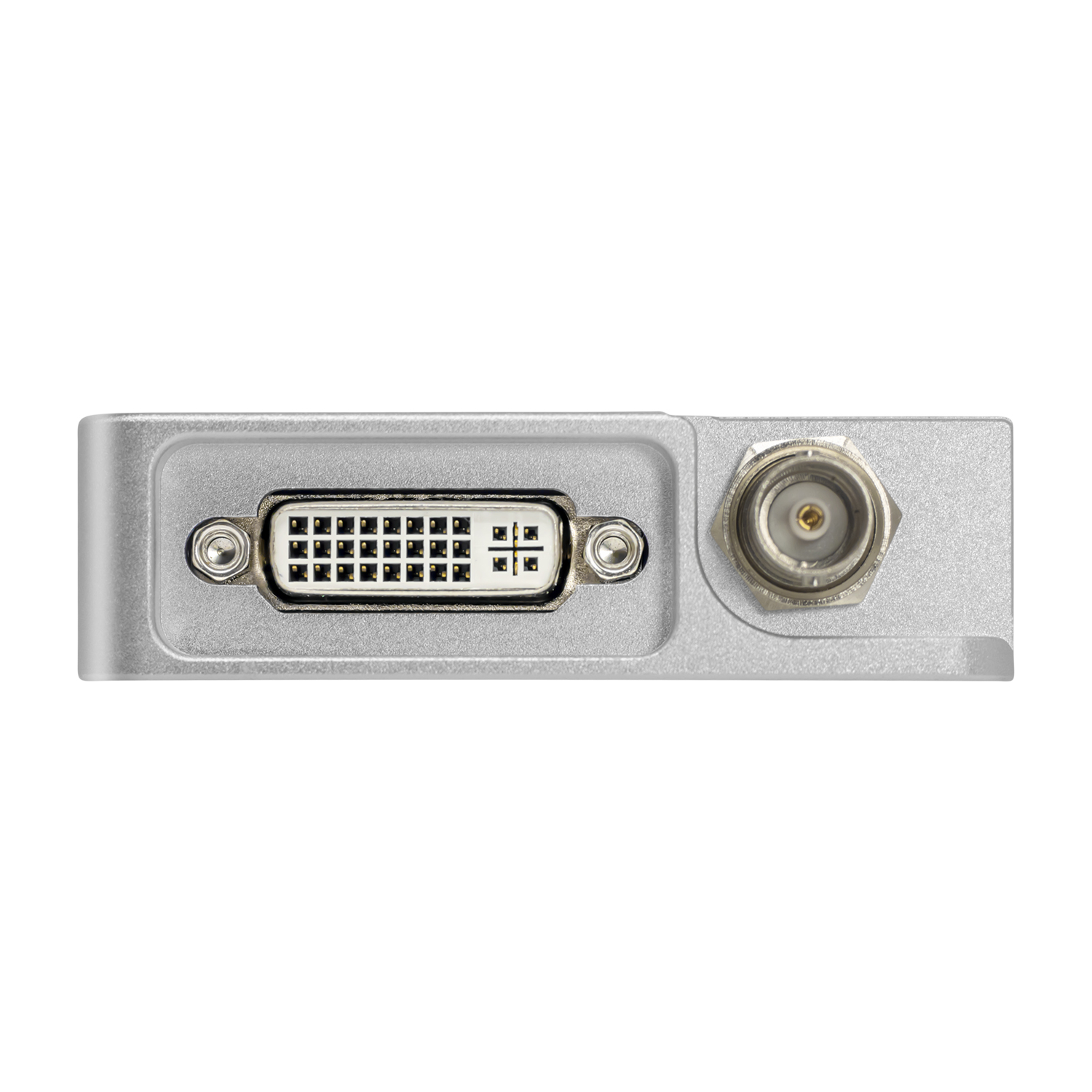

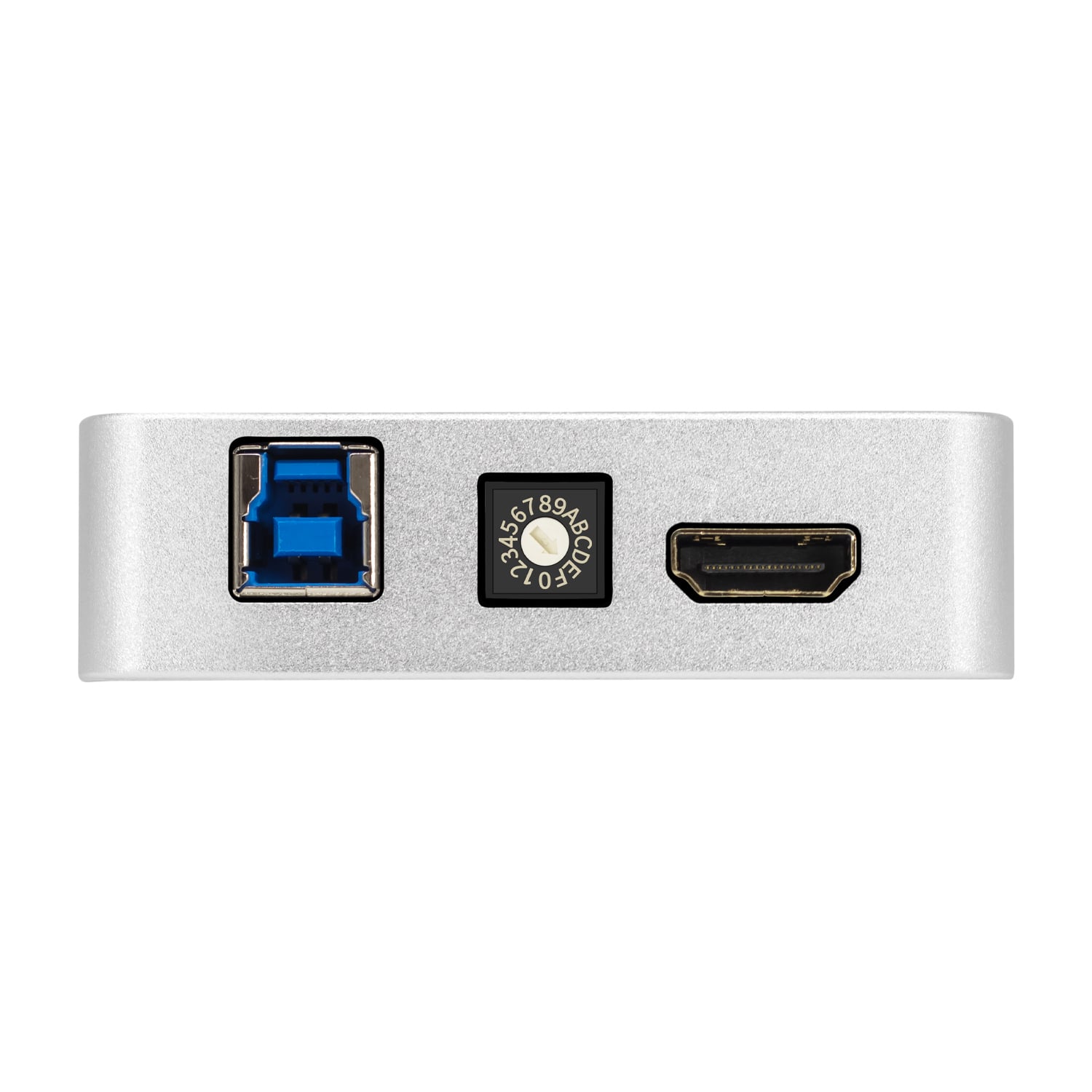

| Input interface | 1xSDI, 1xHDMI, 1xDVI-I |
| Output interface | USB3.0 |
| Video input | 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I |
| Audio input | HDMI/SDI embedded |
| System | Windows (7, 8, 8.1, 10), Linux (kernel version 2.6.38 and above), OS X (10.8 and above) |
| Standard | |
| HDMI input format | HDMI 1.4a compliance, Support 1080P/60HZ 8-bit, (RGB, YUV) SD/HD/3G-SDI, SMPTE-259/274/296/372/424/425/292 compliance |
| Transmission speed | HDMI: 165MHZ, SDI: 1.485Gb/s, 2.97Gb/s |
| Video capture | UVC |
| Audio capture | UAC |
| Output color space | YUY2 |
| General | |
| Operation system | Support version x86 & x64 from Windows 7、8.1、10, Windows Server 2008 R2 |
| Compatible software | vMix, wirecast, OBS, Xsplit, Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.… |
| Compatible dev. interface | DirectShow (Windows), DirectSound (Windows) |
| Update | Firmware can be updated by USB port |
| Dimension | 110x78x22mm |
| Consumption | <= 3.5 W |
| Working Temperature | 0-50 degree |
| Storage Temperature | -20-70 degree |
| Storage humidity | 5%-90% |
