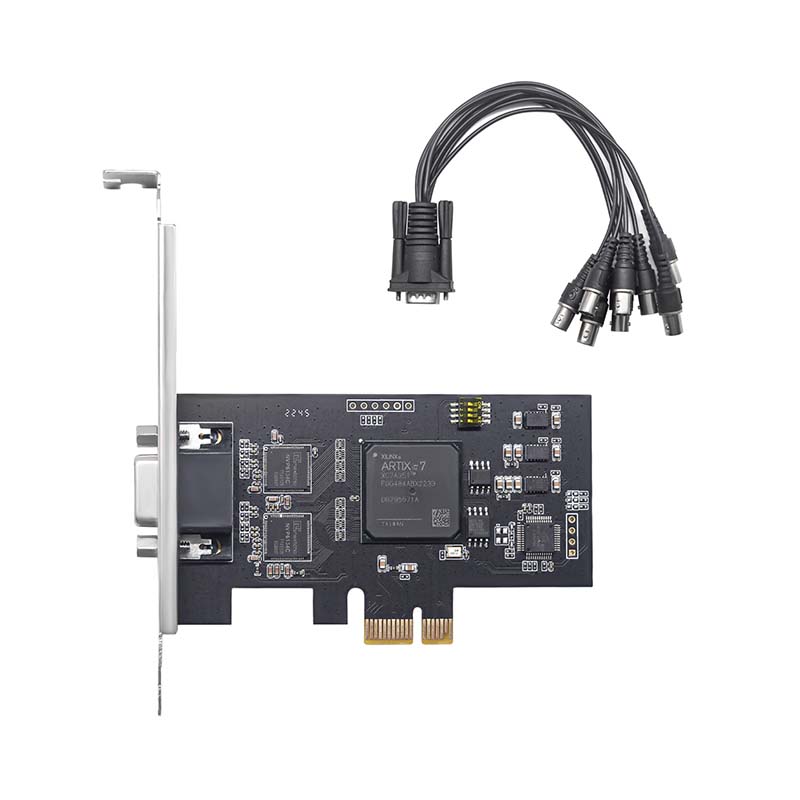

UCAHD-8CH | Professional 8-Channel AHD 1080p PCIe Capture Card

Key Selling Points

• Elite 8-Channel High-Density Capture Capture eight independent AHD signals simultaneously. Supports both 720p and 1080p (Full HD) standards, allowing you to monitor an entire facility or a complex industrial process from a single, centralized workstation.
• High-Bandwidth PCIe 2.0 x4 Interface Built for stability. The PCIe x4 bus provides the dedicated bandwidth necessary to handle eight concurrent HD streams without dropped frames or system bottlenecks. It is fully compatible with x8 and x16 slots.
• Broadcast-Standard Color Depth Process video in professional YUV 4:2:2 color space. Experience clear, high-fidelity visuals that are essential for accurate object identification and technical analysis in security and quality control.
• Scalable Multi-Card Architecture Designed for massive deployments. The UCAHD-8CH supports multi-card installation in a single host PC, enabling you to scale your system to 16, 24, or even 32 channels of AHD capture depending on your hardware's slot availability.
• Ultra-Efficient Industrial Design Engineered for 24/7 continuous operation. Despite managing eight channels, the card maintains a remarkably low power footprint of ≤4.0 Watts, ensuring your system stays cool and reliable even during long-term operation.
• Seamless Software & OS Versatility Fully compatible with Windows 10, Windows 11, and Linux (Kernel 2.6.38+). Works out-of-the-box with industry-standard platforms including vMix, Wirecast, OBS, Zoom, and Microsoft Teams.

Applications

• High-Density Security Hubs: Centralized monitoring for large buildings, warehouses, and campuses.
• Industrial Inspection: Synchronized 8-angle monitoring for automated production and assembly lines.
• Fleet & Transit Monitoring: Integrated multi-camera capture for large vehicles, buses, and logistics hubs.
• Event & Venue Monitoring: Comprehensive coverage for large-scale live events and public venues.
