Hybrid SDI + HDMI Inputs – 1x 3G-SDI and 1x HDMI for simultaneous capture from professional broadcast cameras and consumer HDMI devices
No Converter Needed – Directly connect both SDI and HDMI sources without expensive format converters; saves cost and reduces failure points
Plug-and-Play USB 3.0 – External capture box, no internal installation required; USB 3.0 interface delivers low-latency transmission with laptops and desktops
Crisp 1080p60 Capture – High-quality, smooth video at 60fps with embedded audio support; works with OBS, vMix, Wirecast, Zoom, Teams, and more
Please contact us to serve you!" >
| Interface | |
| USB interface | USB3.0, 360MB/s Bandwidth (Compatiable USB2.0) |

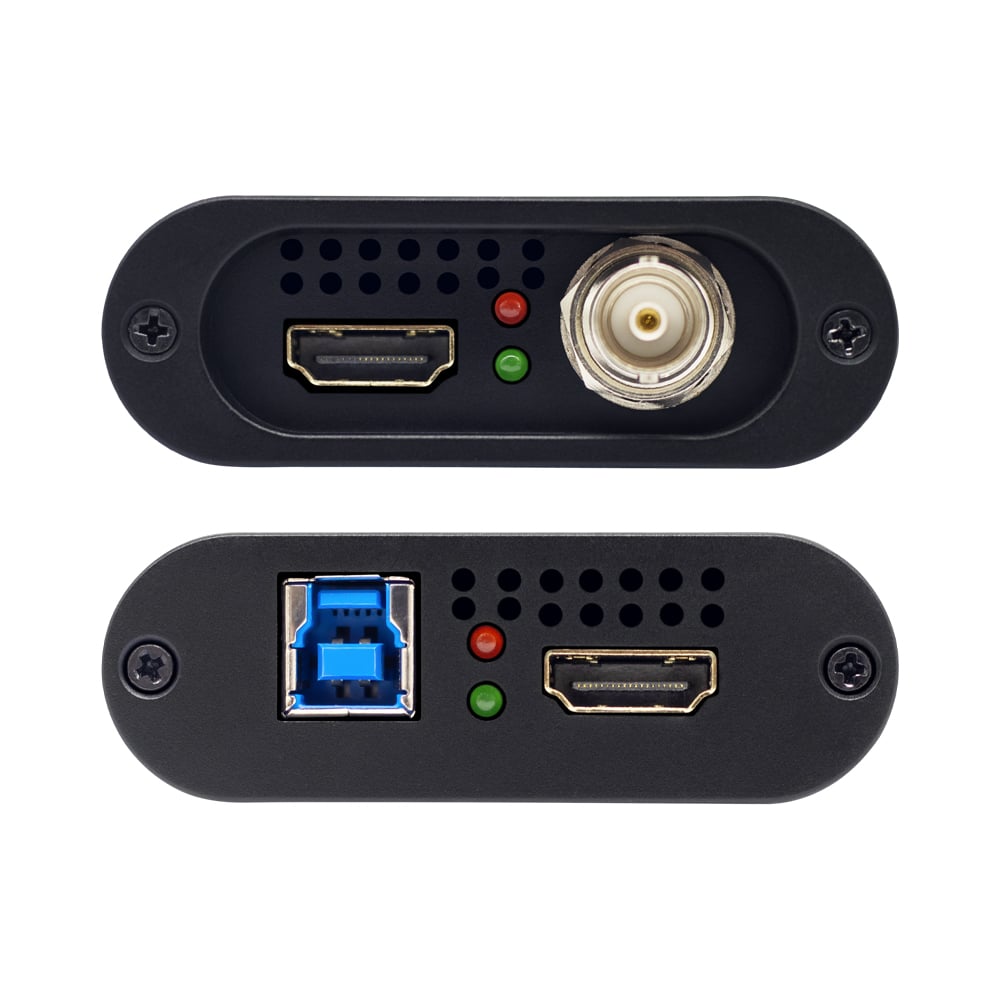

| Input interface | 1xSDI, 1xHDMI (Dual Channel Input) |
| Output interface | Only 1xHDMI Loop (note: this loop output don't support SDI in) |
| Video input | 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I |
| Audio input | HDMI/SDI embedded |
| Standard | |
| HDMI input format | HDMI 1.4a compliance, Support 1080P/60HZ 8-bit, (YUV) SD/HD/3G-SDI, SMPTE-259/274/296/372/424/425/292 compliance |
| Transmission speed | HDMI: 165MHZ, SDI: 1.485Gb/s, 2.97Gb/s |
| Video capture | UVC (USB video class) compliance |
| Audio capture | UAC (USB audio class) compliance |
| Output color space | YUV2 NV12 |
| Recording Mode | Software Compression, Real-Time Mode |
| General | |
| Operation system | Support version x86 & x64 from Windows 7、8.1、10, Windows Server 2008 R2, Linux |
| Compatible software | Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wirecast, AMCAP etc. |
| Compatible dev. interface | DirectShow (Windows), DirectSound (Windows) |
| Update | Firmware can be updated by USB port |
| Dimension | 69x90x24mm |
| Box Dimension | 100x146x53mm |
| Net/Gross Weight | 0.2 / 0.3kg |
| Consumption | <= 3.5 W |
| Working Temperature | 0-50 degree |
| Storage humidity | 5%-90% |
| Included in package | |
| *USB Grabber 1pcs *USB3.0 Cable 1pcs *User Manual 1pcs | |
