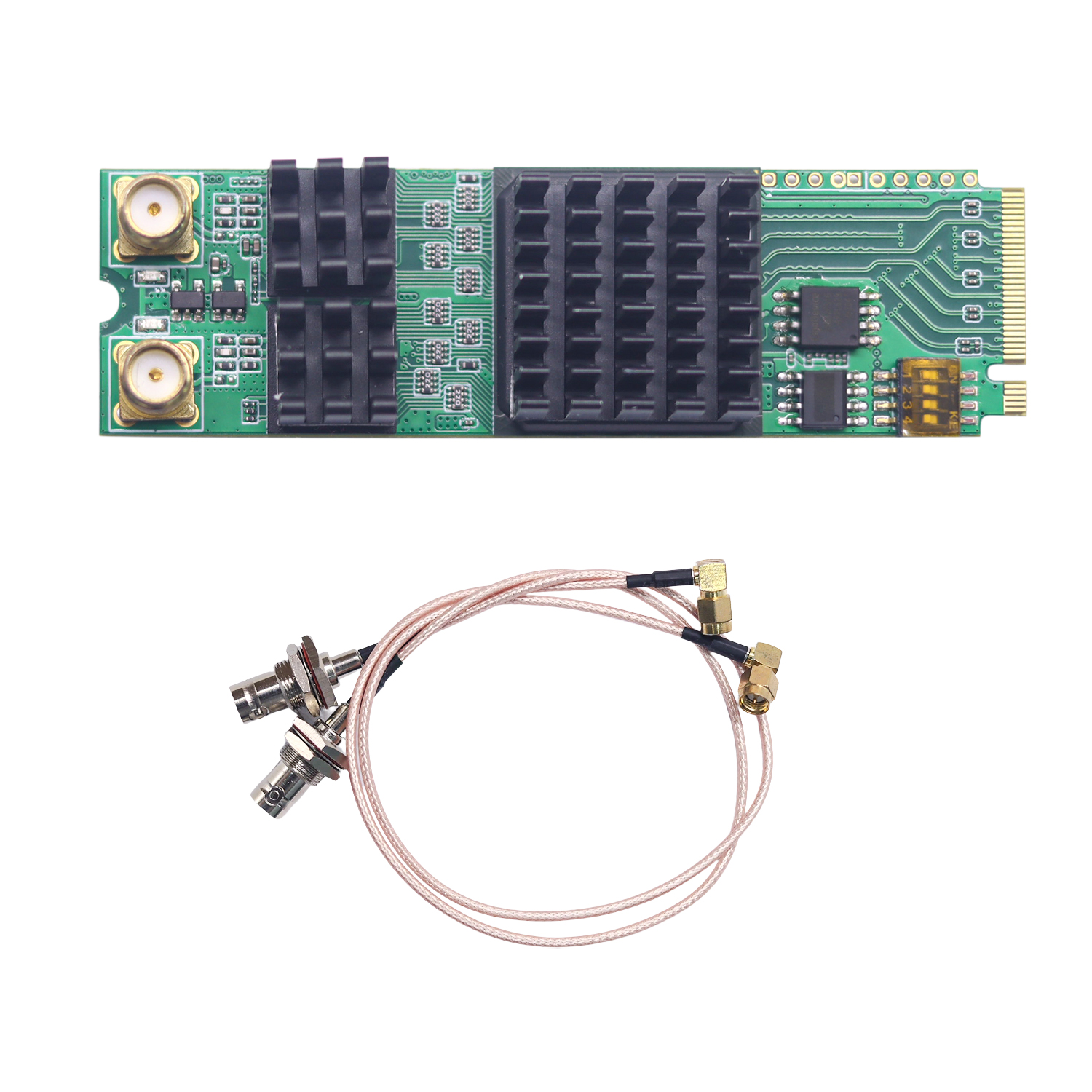

UC3520S-M | Professional Dual-Channel 3G-SDI M.2 Capture Card (1080p60)

Key Features

• Simultaneous Dual-Channel SDI Capture Capture two independent 3G-SDI signals at 1080p @ 60fps simultaneously. Perfect for vision systems that require multiple angles or synchronized data streams in real-time.
• Space-Saving M.2 2280 Standard Designed for the M.2 2280 Type M slot (PCIe 2.0 x4), this card fits seamlessly into modern Small Form Factor (SFF) workstations, NUCs, and industrial PCs where traditional PCIe slots are unavailable.
• Extended Signal Range Engineered for reliability over distance. The UC3520S-M supports SDI coaxial cable runs up to 262 feet (80 meters), ensuring stable signal acquisition in large venues or distributed industrial setups.
• Broadcast-Grade Visual Fidelity Capture video in professional YUV 4:2:2 color space. Experience low-latency, uncompressed video quality that meets the rigorous standards of broadcasting and surgical imaging.
• Industrial-Strength Reliability Built for 24/7 continuous operation. With ultra-low power consumption (≤3.5W) and a robust 12mm low-profile design, it maintains thermal stability even in high-density rackmount environments.
• Universal Software & OS Support Fully compatible with Windows 10, Windows 11, and Linux (Kernel 2.6.38+). Works out-of-the-box with professional standards including DirectShow and V4L2, and software like OBS, vMix, Wirecast, Zoom, and Microsoft Teams.

Applications

• Multi-Camera Production: Capture two SDI camera feeds in a single compact workstation.
• Medical Systems: Dual-view surgical imaging and diagnostic record-keeping.
• Industrial Vision (IPC): Automated inspection systems requiring multiple synchronized SDI inputs.
• Education & Corporate: Capturing both a presenter and a presentation source simultaneously.
